CNC 4" Dust Hose Control! (Revision 2)

Mike
Jul 6, 2021
1 min read

After putting my Dust Hose carriages in use for an extended period, I started to notice that their holding power degraded over time. I attribute that to the heat in the shop, but I think that is expected for many shops out there, so I went back to Fusion360 and came up with a new latch system that has multiple latch designs (one for wires and one without). I also determined that the wire clips I designs suffered a similar fate. There was no real reason to compete with velcro (hook and loop) that you can get cheaply from Amazon (https://amzn.to/3hEpFMG).

.stl files are provided for free for personal use only. Please contact me if you would like to use these in a different manner.

3/4" EMT Conduit Carriage (Rev.2)

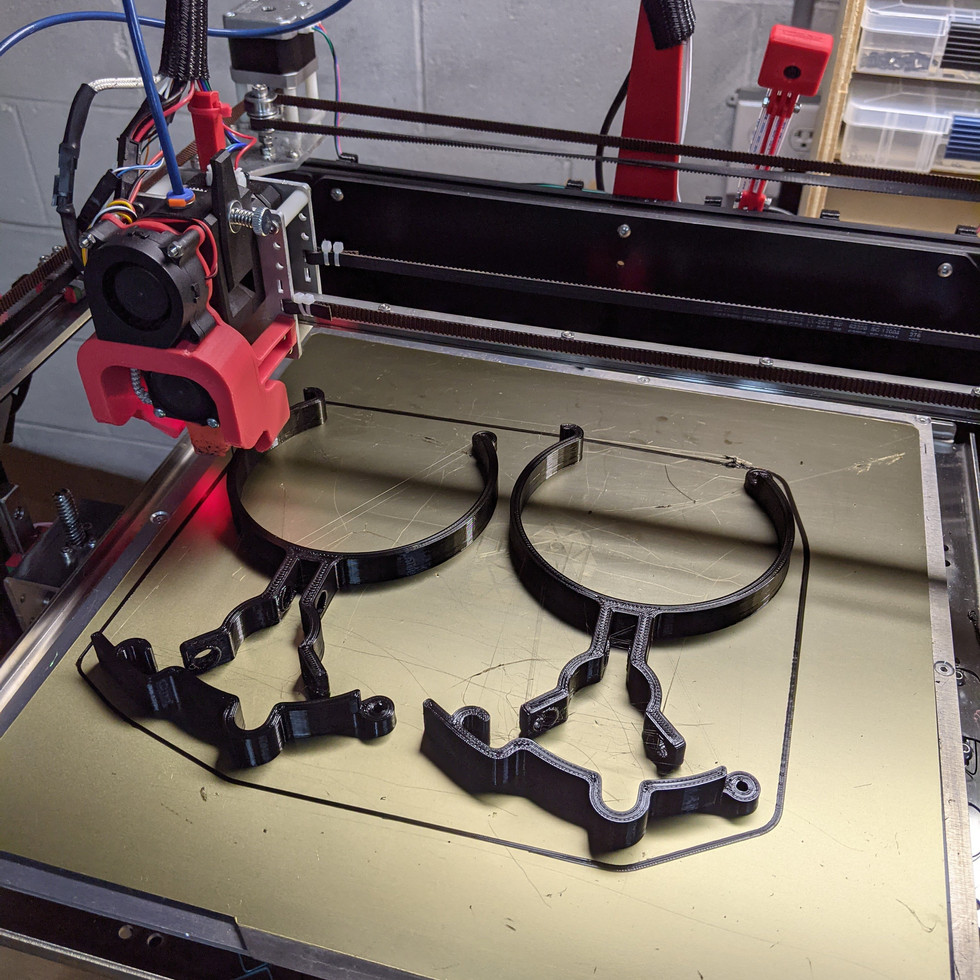

These allow for the hose to slide down the EMT and move with the CNC. You will need (3) 608 Bearings, (3) 5/16"x1" Bolts, (3) 5/16" Nuts, and (2) 5/16" Washers per carriage.

Purchase: STORE

Download .stl: File Share (FREE!)

Z Axis Mount for Hose

Keeps the hose away from the spindle and Stepper motor

Version for mounting to the spacers for Workbee and Lead CNC machines.
Version for mounting to NEMA23 for many machine variations.

Z Axis showing both variations on a Workbee CNC.

Purchase: STORE

Download .stl: File Share (FREE!)

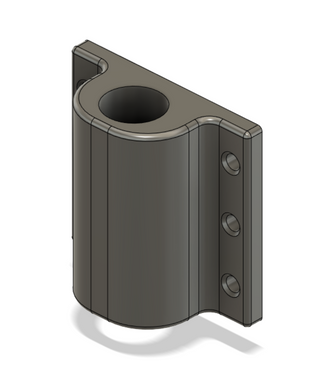

3/4" EMT Conduit Mount

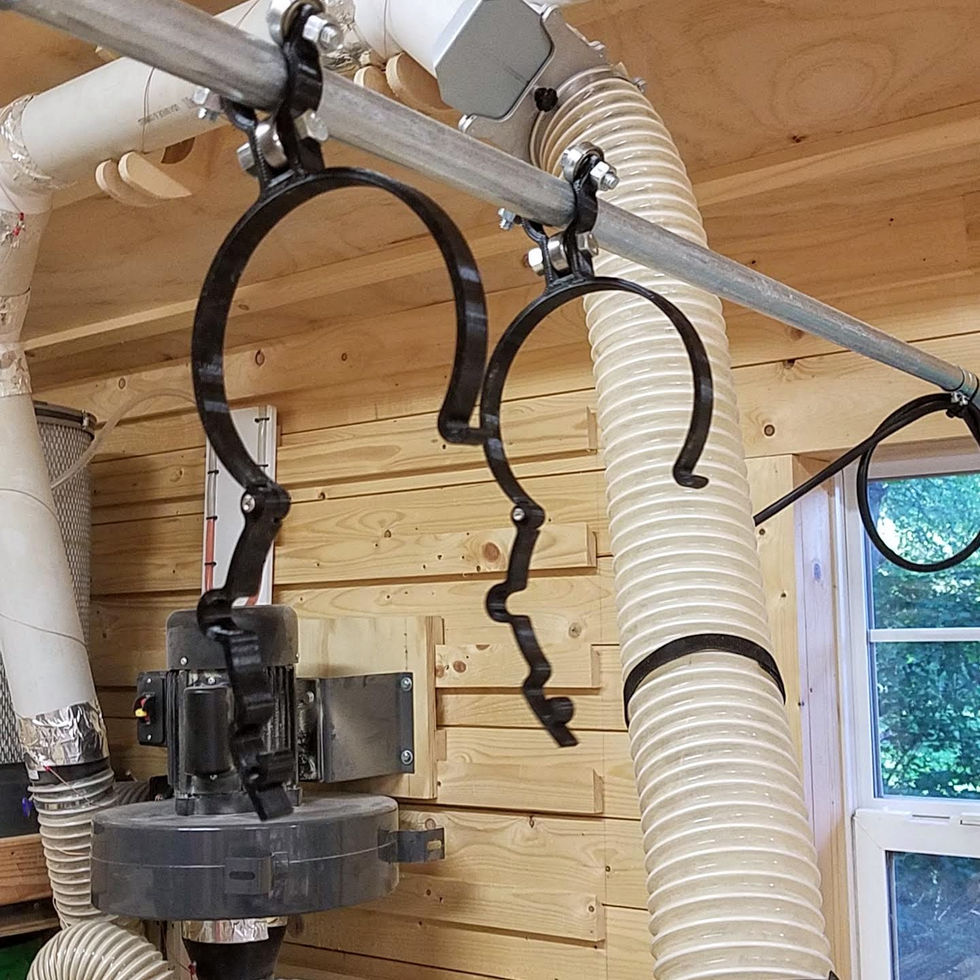

3D Printed Mounts for utilizing 3/4" EMT conduit to support your dust hose! You will want a stick of 3/4" EMT Conduit, 90deg Bend, and some 3/4" EMT Couplings.
